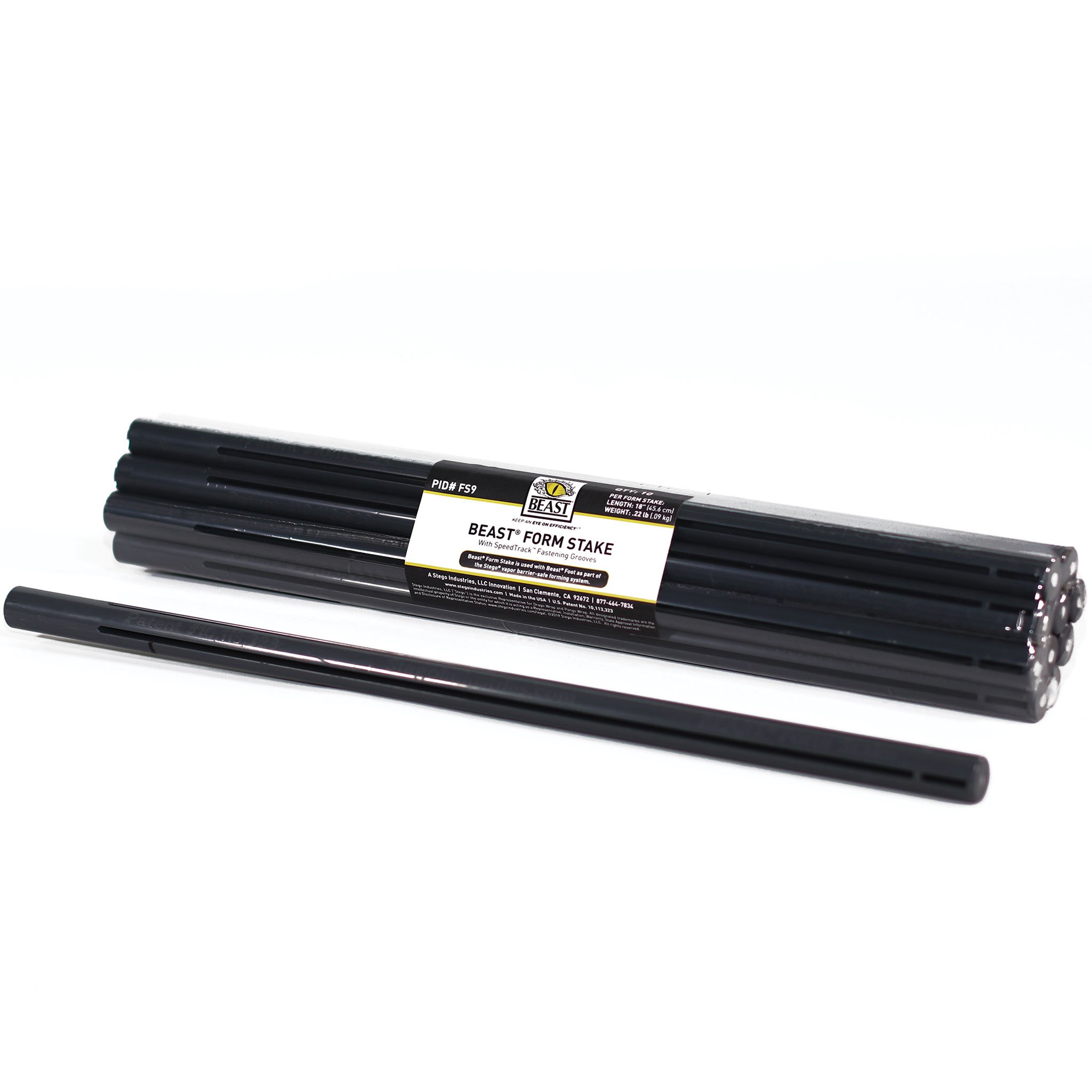

BEAST® Form Stake

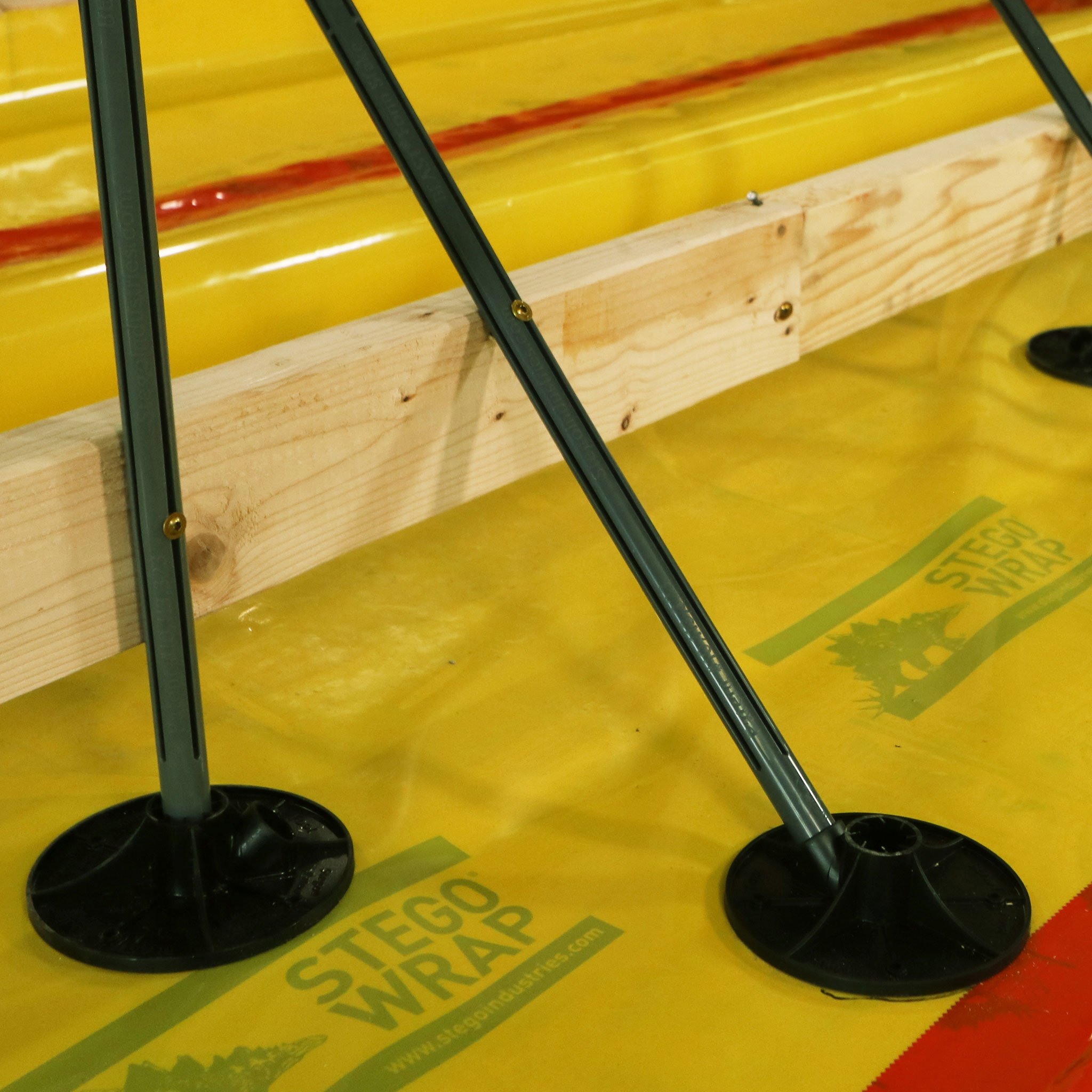

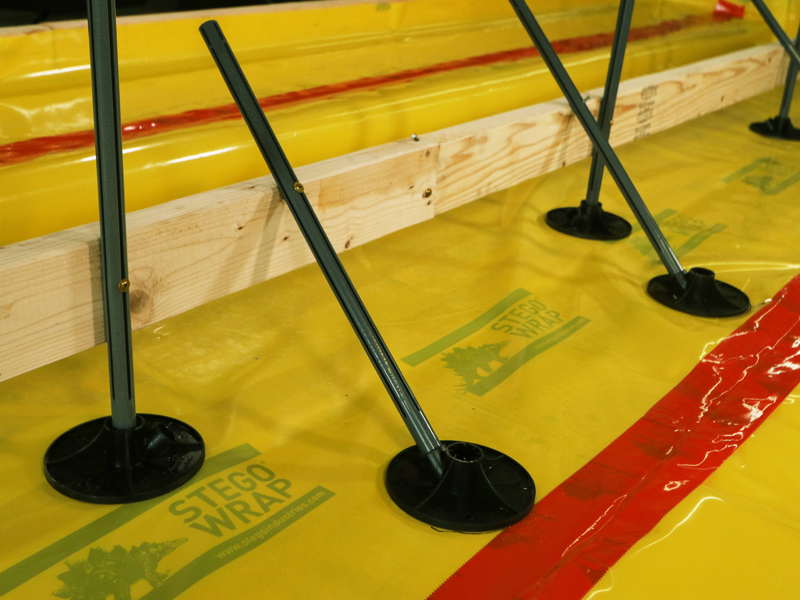

Beast Form Stake takes the place of traditional screed pad posts and can be used to hold a concrete form to the proper elevation when placed in the vertical position. When utilizing the threaded side boss, Beast Form Stake serves as a 45-degree lateral form brace. Beast Form Stake can also be used with Beast Foot and Beast ® Hook as part of a vapor barrier-safe 2x4 screed system.

APPLICABLE STANDARDS American Society for Testing & Materials (ASTM):

• ASTM E1643: Standard Practice for Selection, Design, Installation, and Inspection of Water Vapor Retarders Used in Contact with Earth or Granular Fill Under Concrete Slabs Section
• Section 7.2: Use reinforcing bar supports with base sections that minimize the potential for puncture of the vapor retarder.
• Section 7.3: Avoid use of stakes driven through the vapor retarder.

Physical Properties:

• Composed of 100% virgin ABS
• Length: 18”
• Diameter: ¾”
• Fastening Grooves: Duplex Nail (Up to 8D) or Self-Tapping Screw (Up to #8)

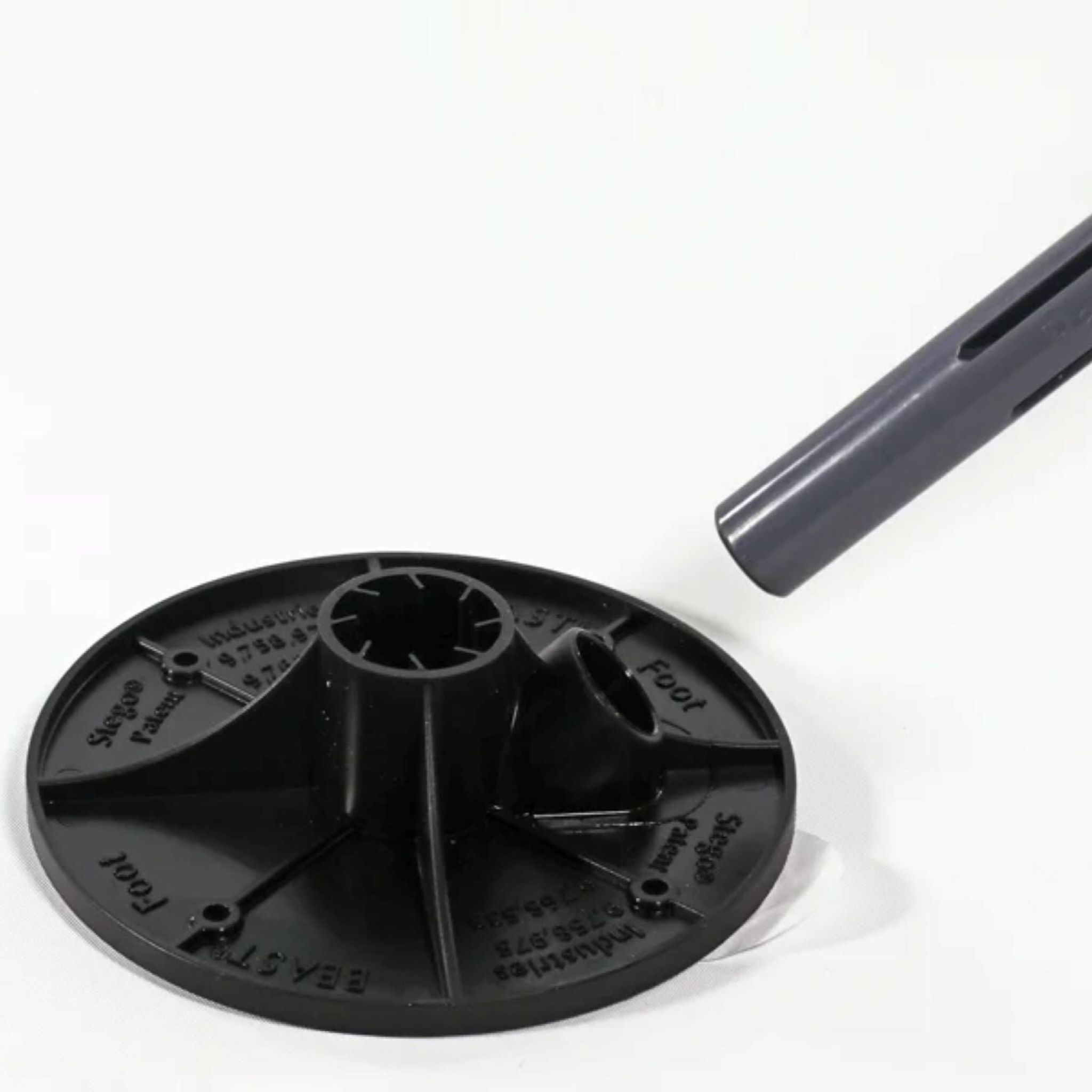

• Internal Thread (1/2”-13 NC Thread) – Attaches to Beast Foot: – (Approximately 2 Full Turns)
• Weight: Approx. 0.22 lb

Additional Benefits:

• Available nationwide
• Easy installation
• Beast Form Stake is a re-usable component

Bring a whole new level of accuracy to your next job with the simple and revolutionary Beast Concrete Accessories.
