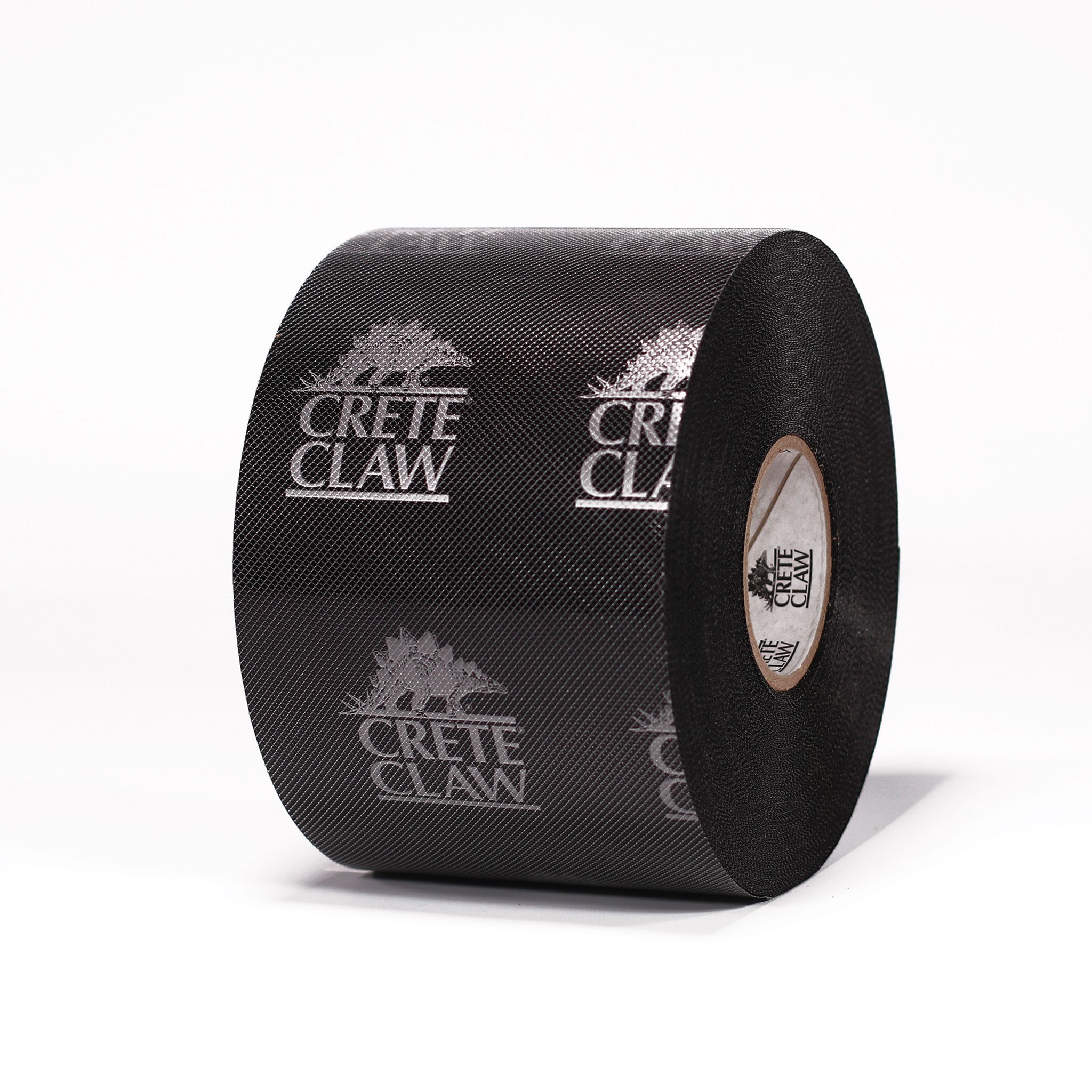

STEGO^® CRETE CLAW^® TAPE 6"

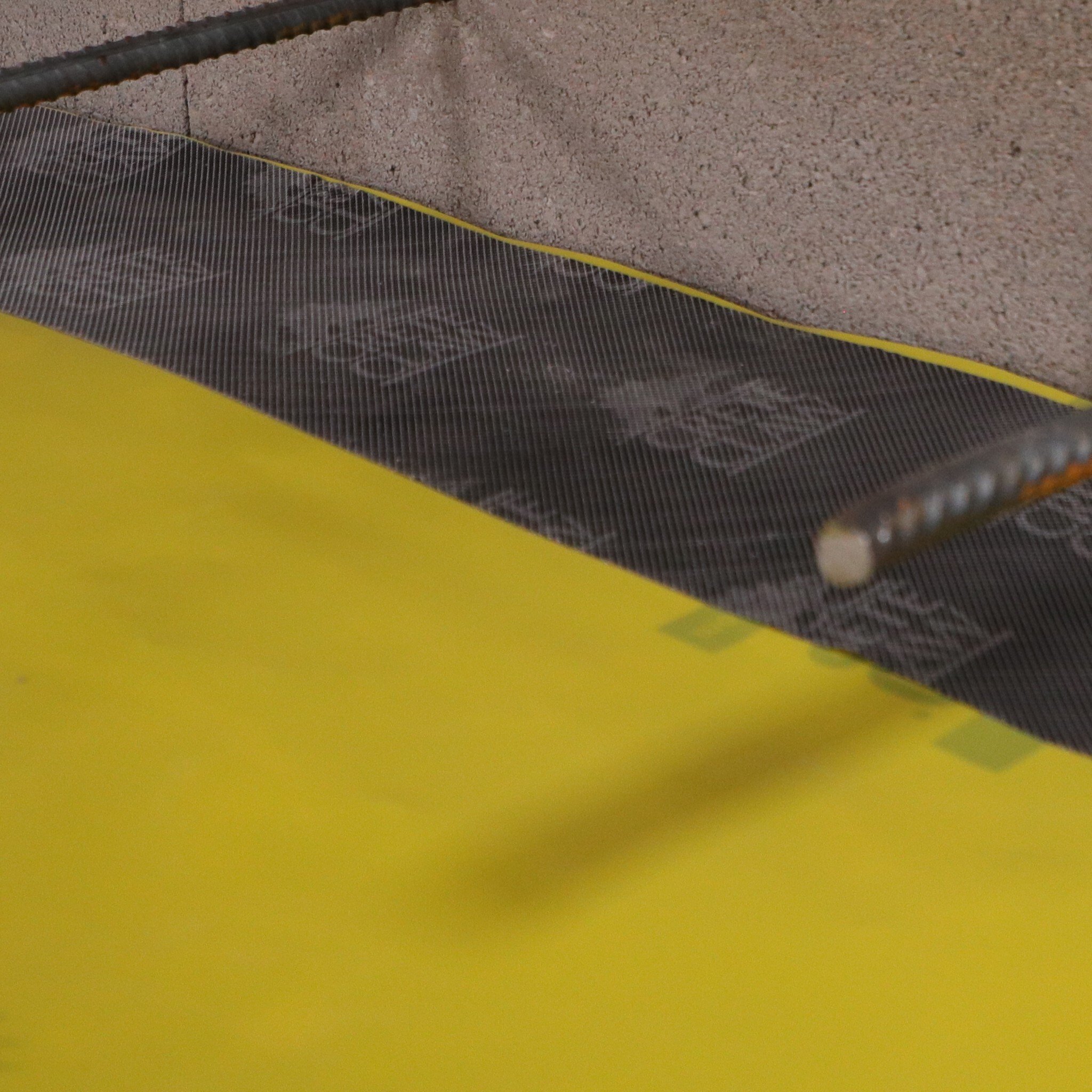

Stego Crete Claw Tape is an innovative and economical accessory that seals both Stego Wrap and StegoHome Wrap to concrete while the concrete is placed and hardens. Applications of Stego Crete Claw 6” Tape include: bonding the wrap to the underside of the slab and holding it in place after soil or void/carton form movement; can also be used for sealing of perimeter and terminating edges of the wrap. This multi-layered tape mechanically seals the wrap to concrete cast against it to help you hold the wrap to the underside of the concrete and meet the requirements of ASTM E1643.

APPLICABLE STANDARDS American Society for Testing & Materials (ASTM):

• ASTM E1643: Standard Practice for Installation of Water Vapor Retarders used in Contact with Earth or Granular Fill under Concrete Slabs
• ASTM F1249: Test Method for Water Vapor Transmission Rate through Plastic Film and Sheeting using a Modulated Infrared Sensor
• ASTM D903: Standard Test Method for Peel or Stripping Strength of Adhesive Bonds

Physical Properties:

• Total Thickness: 26 mil
• Permeance: 0.03 perms
• 180^• Adhesion Peel Strength - ASTM D903: 17.6 lbf/in
• Shear Adhesion Strength: 49 lbf/in^2*


  ---

  ^{*Specimens failed by stretching vapor barrier to failure before pulling Stego Crete Claw Tape from concrete. Note: perm unit = grains/(ft2*hr*in-Hg)}

Additional Benefits:

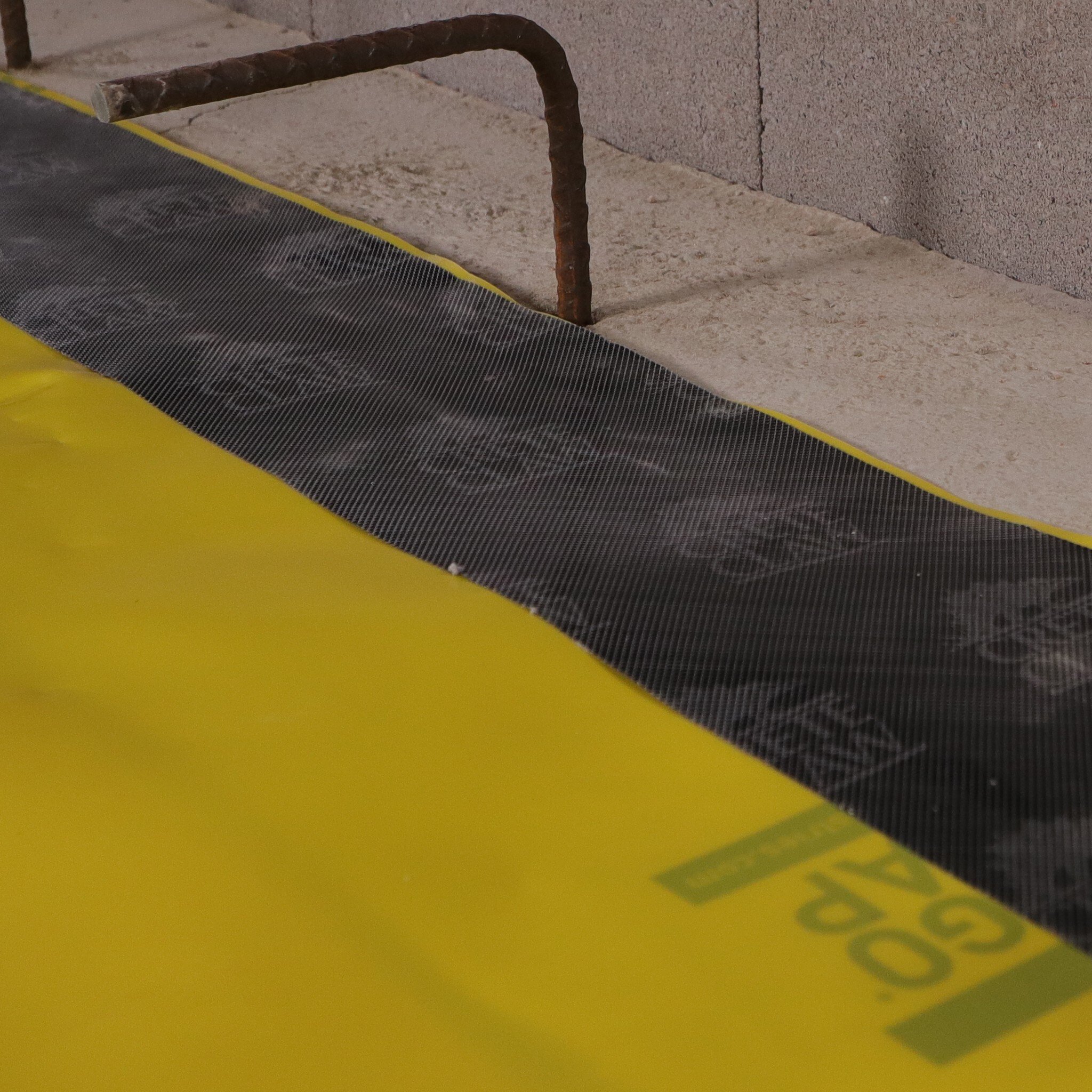

• Great product to bond and hold Stego Wrap to the underside of the concrete slab, even after soil movement and/or when slabs are cast on void/carton forms
• Place Stego Crete Claw Tape anywhere on the vapor barrier that you want, to form a bond between the vapor barrier and fresh concrete
• Quick and easy to install
• Available nationwide

Stego has the accessories you need to complete an ASTM E1643-compliant installation. Stego Tape, Stego Mastic, Stego Crete Claw Tape and StegoTack Tape enable efficient vapor barrier installations, saving time and resources.
