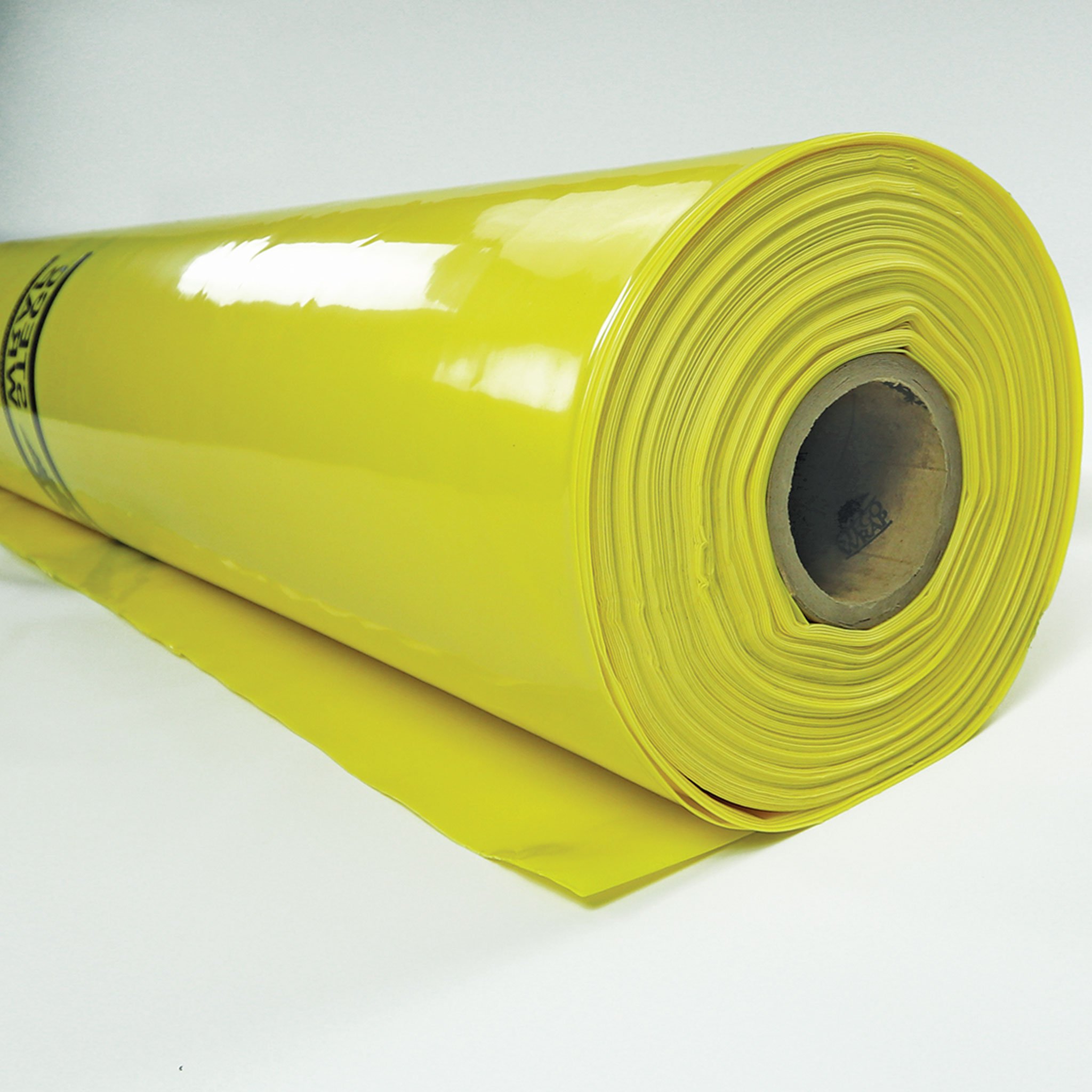

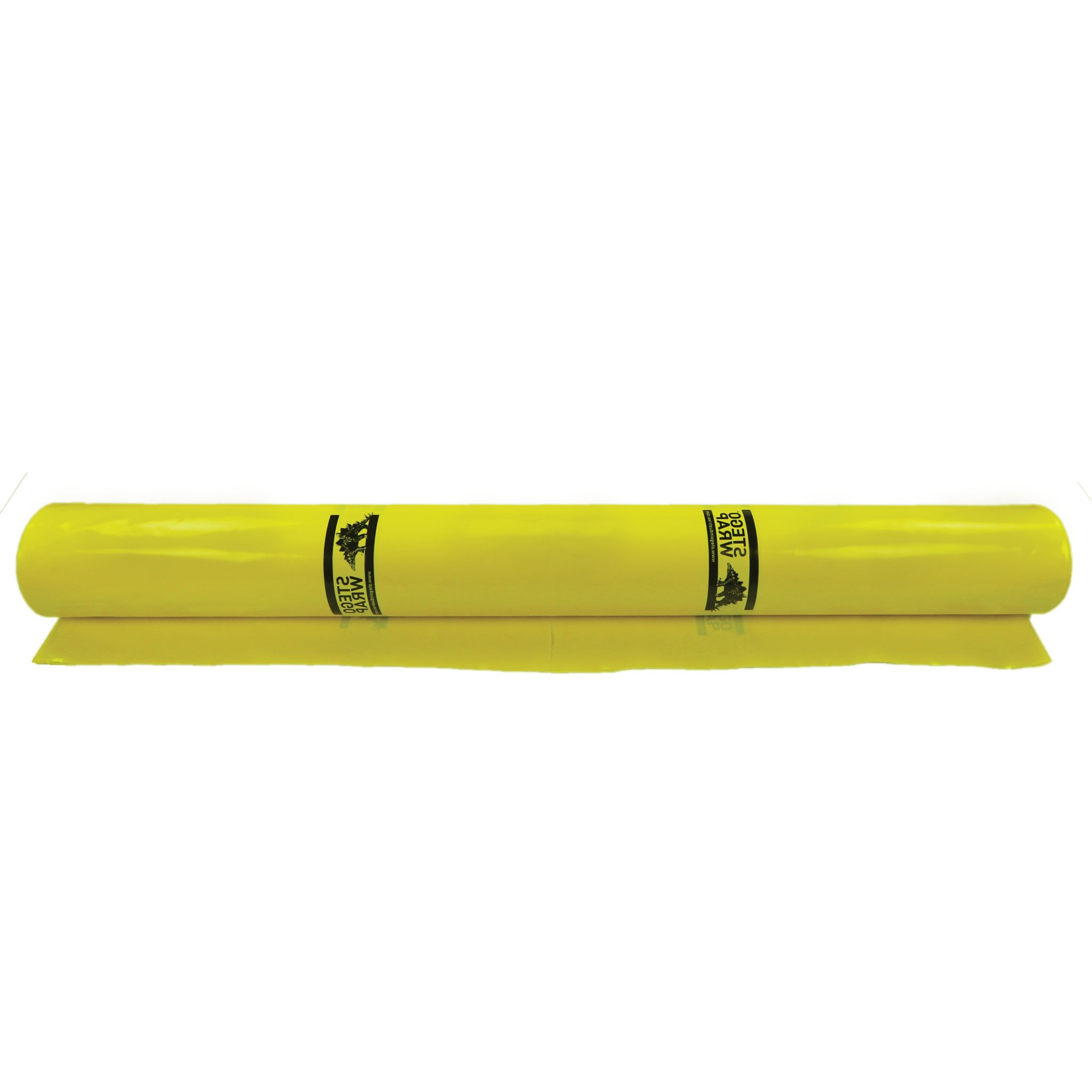

Stego® Wrap Vapor Barrier (20-mil)

Superior Protection Against Water Vapor Diffusion

Stego's cutting-edge 20-Mil Vapor Barrier is developed from the same proprietary blend of prime virgin resins and additives as our popular 15-mil barrier, and provides additional protection for crucial projects. This advanced multi-layer plastic extrusion blown film vapor barrier provides unrivaled moisture protection in even the most unforgiving conditions, such as intense fluctuating temperatures and humidity, and is frequently used on high-profile projects such as data centers and hospitals.

Its many features include:

  • Can be used in commercial, residential, and industrial applications
  • Helps defend against soil gases (radon, methane)

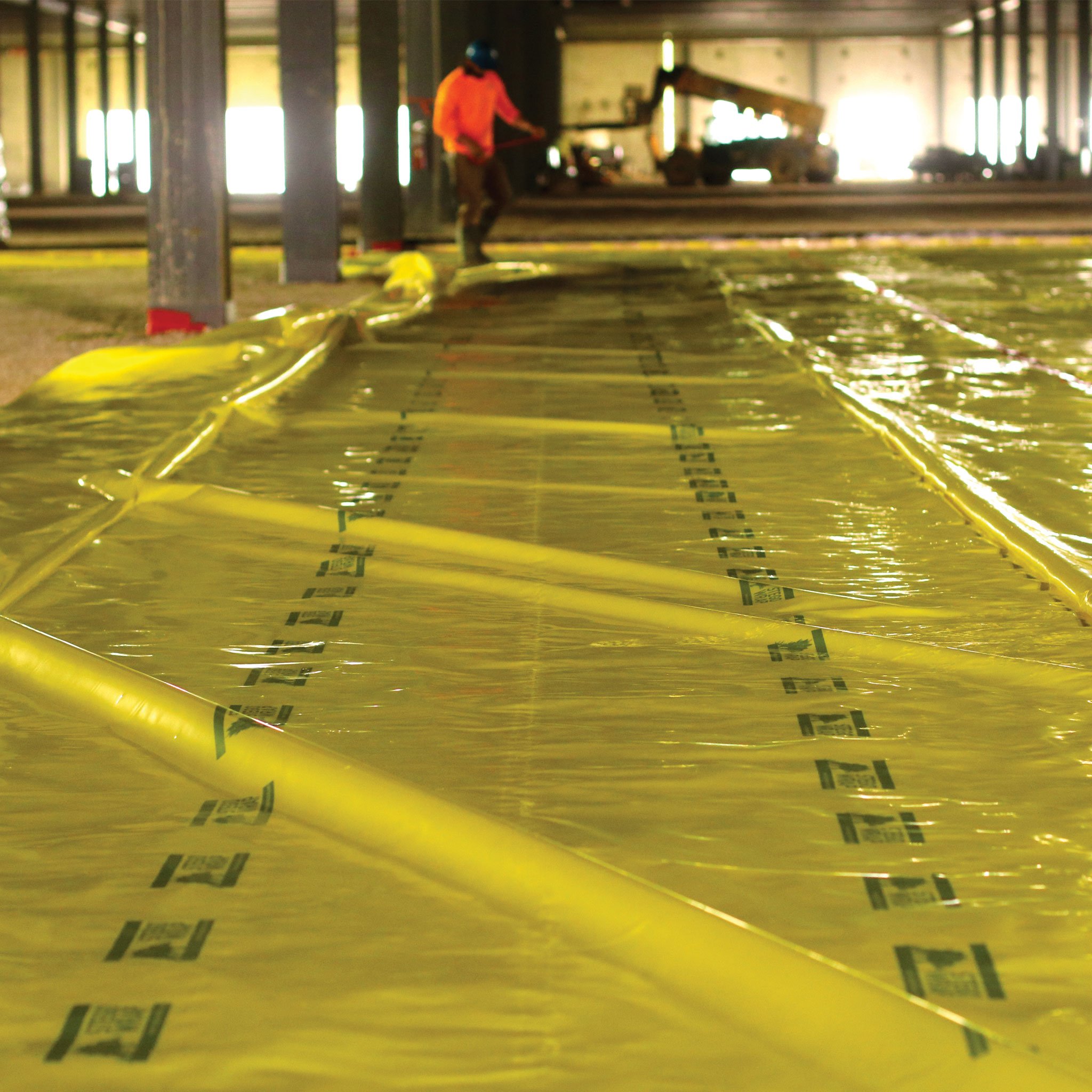

  • Below concrete slab vapor barrier
  • Moisture proofing
  • Shield against floor failures
  • Toughest barrier available for most sensitive projects


  • Details
  • Accessories
  • Videos
  • Case Studies
Vapor Barrier

Stego Wrap 20-Mil Vapor Barrier has an extremely low permeance which is below current industry standards for products of its kind. Our vapor barrier has a baseline water vapor permeance rating of 0.0071 perms and puncture resistance exceeding 3500 grams, making it a Class A product per ASTM E1745. After being conditioned to cycles of wetting and drying, heat, low temperature, and soil organisms exposure, tests on permeance ranged from 0.0077 perms to 0.0088 perms. The 20-mil barrier provides control against water vapor and soil gases.

Since this product is not made with recycled materials and instead uses prime, virgin resins, the vapor barrier will greatly resist degradation. The product is engineered to provide superior strength and durability, never flaking and resisting tears, snags, punctures, and cracks.

Stego also offers the accessories needed for an ASTM E1643-compliant installation, which have been engineered for our Stego Wrap line: Stego Tape, Stego Mastic, Stego Crete Claw® Tape and StegoTack® Tape. Using these products enables an efficient installation, saving time and resources while maintaining the integrity of the vapor barrier system.

APPLICABLE STANDARDS American Society for Testing & Materials (ASTM):

  • ASTM E1745 Class A, B & C: Standard Specification for Water Vapor Retarders Used in Contact with Soil or Granular Fill Under Concrete Slabs.
  • ASTM F1249: Test Method for Water Vapor Transmission Rate through Plastic Film and Sheeting using a Modulated Infrared Sensor.
  • ASTM D1709: Test Methods for Impact Resistance of Plastic Film by Free-Falling Dart Method
  • ASTM D882: Test Method for Tensile Properties of Thin Plastic Sheeting
  • ASTM E154: Test Methods for Water Vapor Retarders used in Contact with Earth Under Concrete Slabs, on Wall, or as Ground Cover.
  • ASTM D1434: Standard Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting

 Physical Properties:

  • Under-slab vapor retarder: Exceeds Class A, B, and C
  • Water Vapor Permeance: 0.0071 perms
  • Puncture Resistance: 3500+ grams
  • Tensile Strength: 97.7 lbf/in
  • Permeance after conditioning: 0.0088 perms, maximum

 Product Benefits:

  • Available nationwide
  • Exceeds permeance requirements for its designated ASTM E1745 Class A
  • Resists vapor diffusion and moisture intrusion
  • Exceptional durability
  • Resists deterioration
  • Low maintenance needed
  • Simple, dependable installation
  • Provides a line of defense against soil gases, such as methane or radon
New Call-to-action

Stego has the accessories you need to complete an ASTM E1643-compliant installation. Stego Tape, Stego Mastic, Stego Crete Claw Tape and StegoTack Tape enable efficient vapor barrier installations, saving time and resources.


Stego Tape

A low permeance tape designed for use...

Stego Mastic

Stego Mastic

A liquid applied vapor retardant membrane...


Stego Crete Claw Tape

A multi-layered tape...



A double-sided adhesive strip used to bond...
