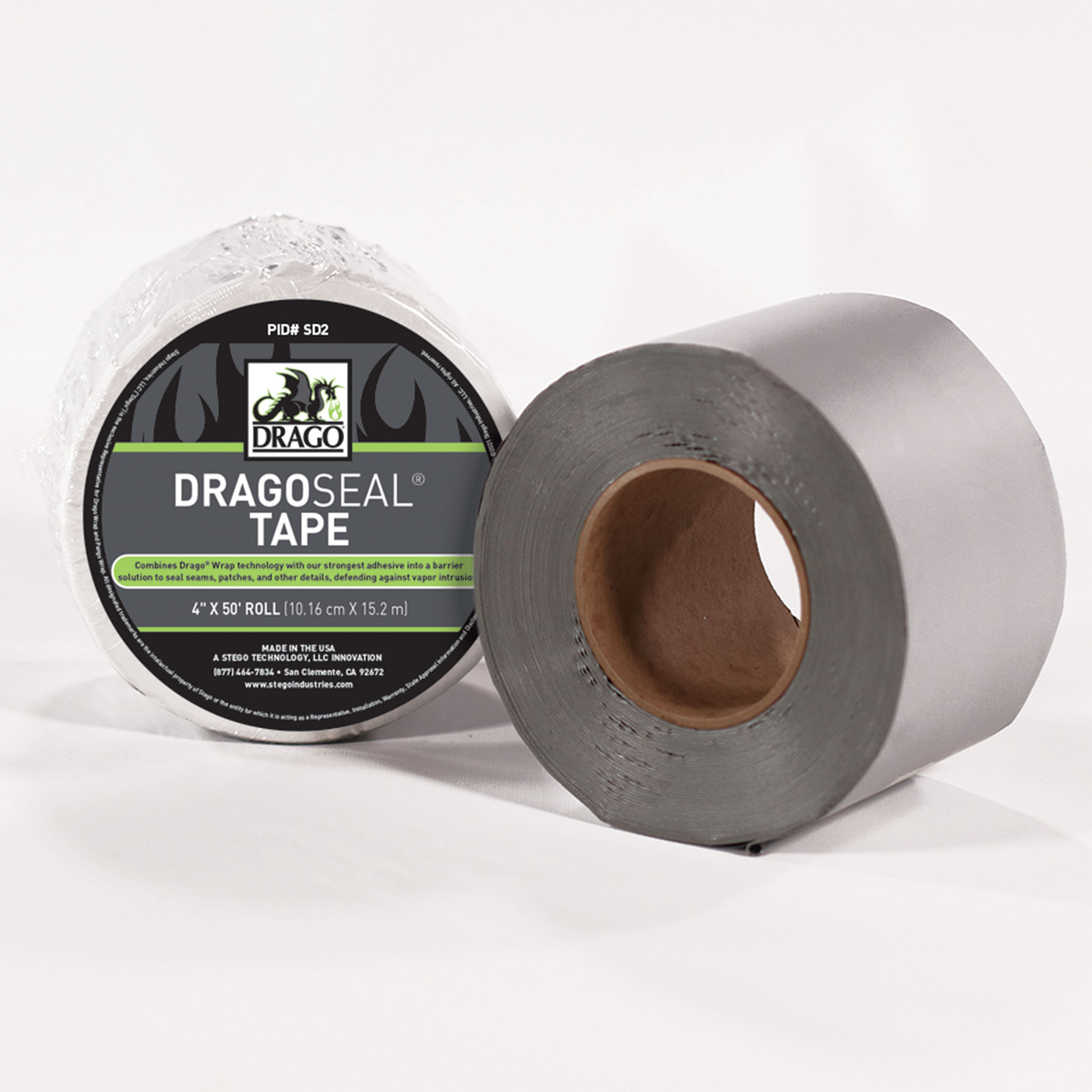

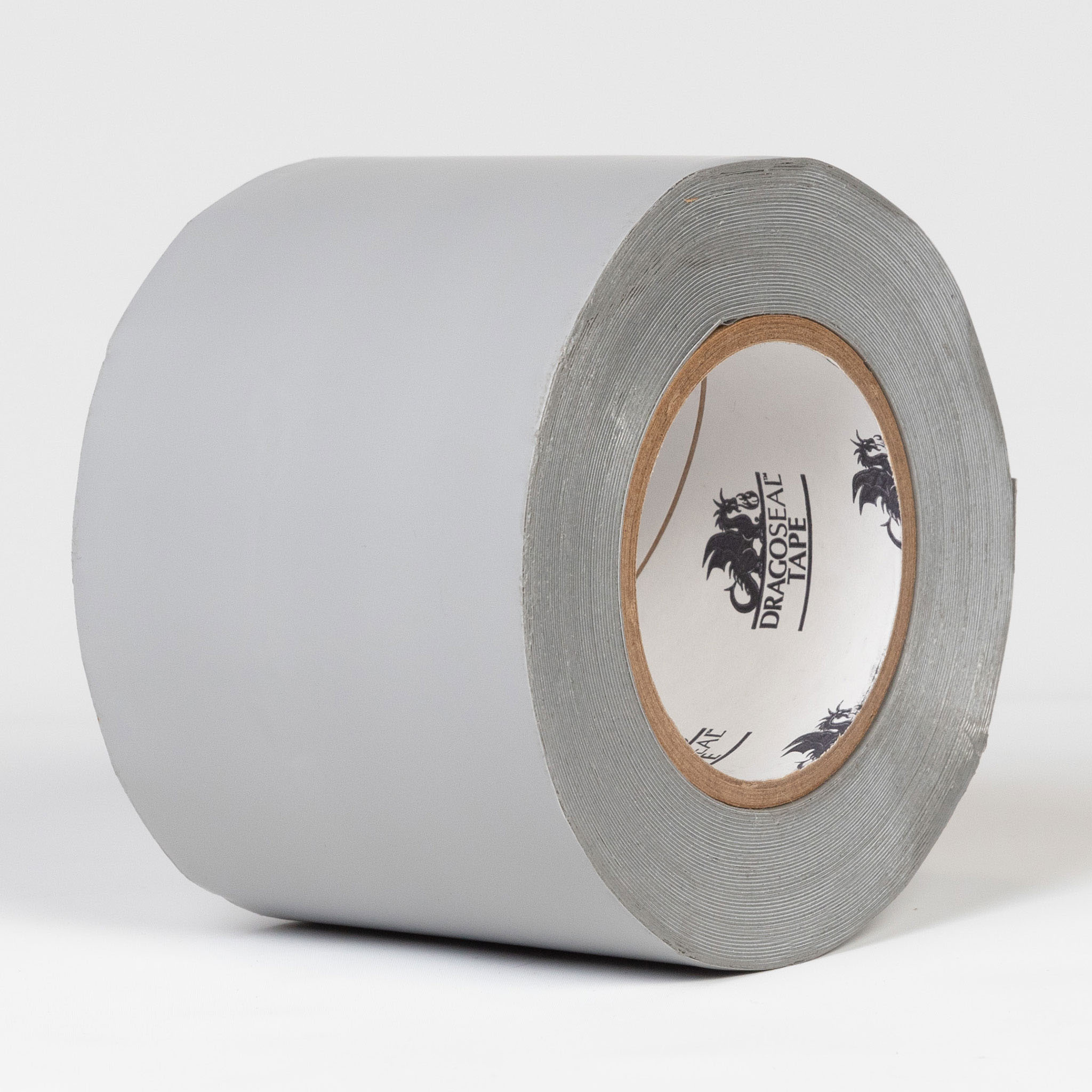

DRAGOSEAL™ TAPE

Gas Barrier Tape

DragoSeal Tape is a critical component to the Drago Wrap Vapor Intrusion Barrier System. Combining a solvent-resistant, pressure-sensitive adhesive, and the same barrier technology as Drago Wrap, it is an ideal accessory for completing a fully intact installation. DragoSeal Tape is a multi-purpose tape designed for sealing, seaming, splicing, and patching, and is ideal for sealing Drago Wrap seams.

Its many features include:

  • Exceptional initial tack and long-term adhesion
  • Extensive, independent testing for hydrocarbons and chlorinated solvents
  • Extremely low water vapor permeance

HOW TO BUY >

  • Details
  • Accessories
  • Videos
New Call-to-action

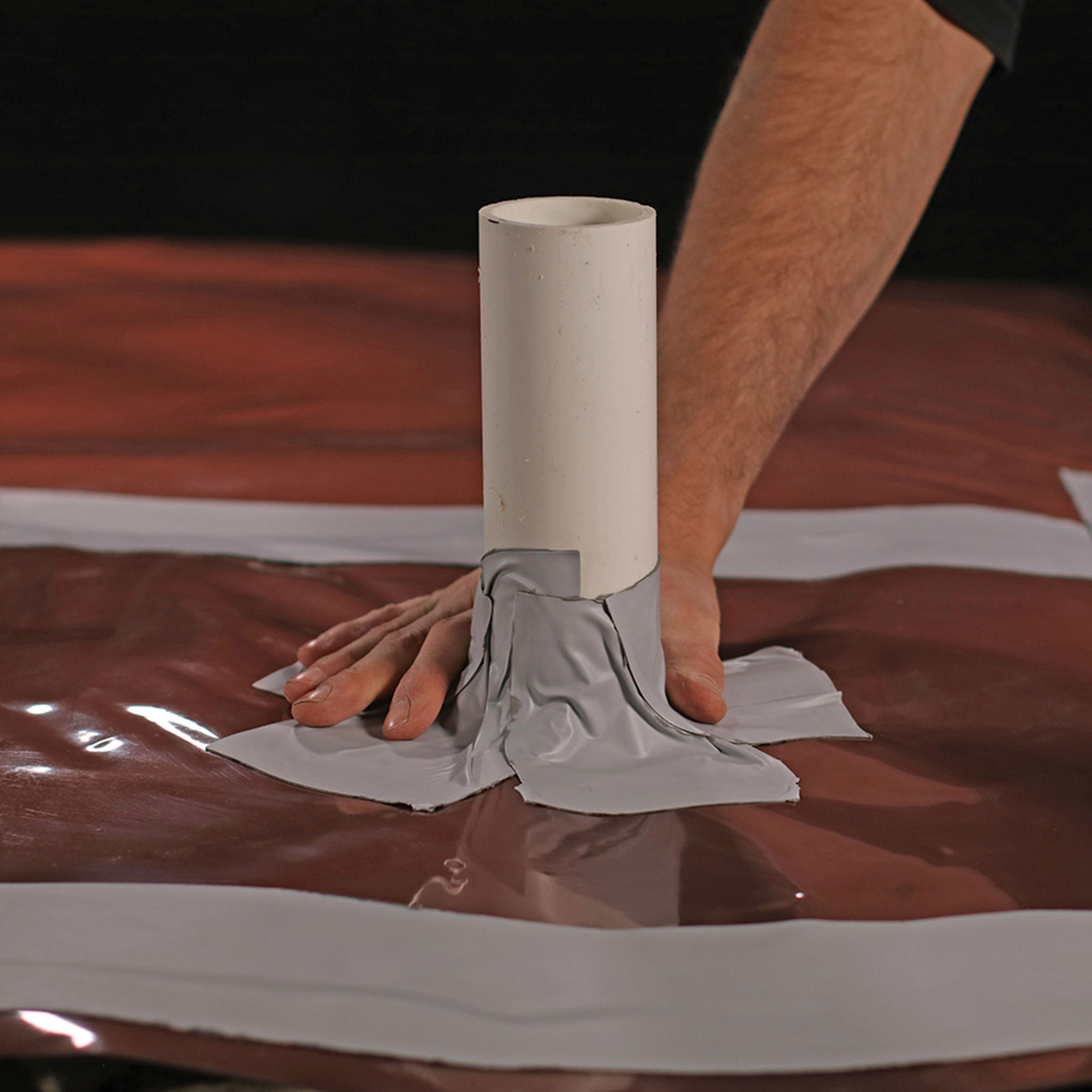

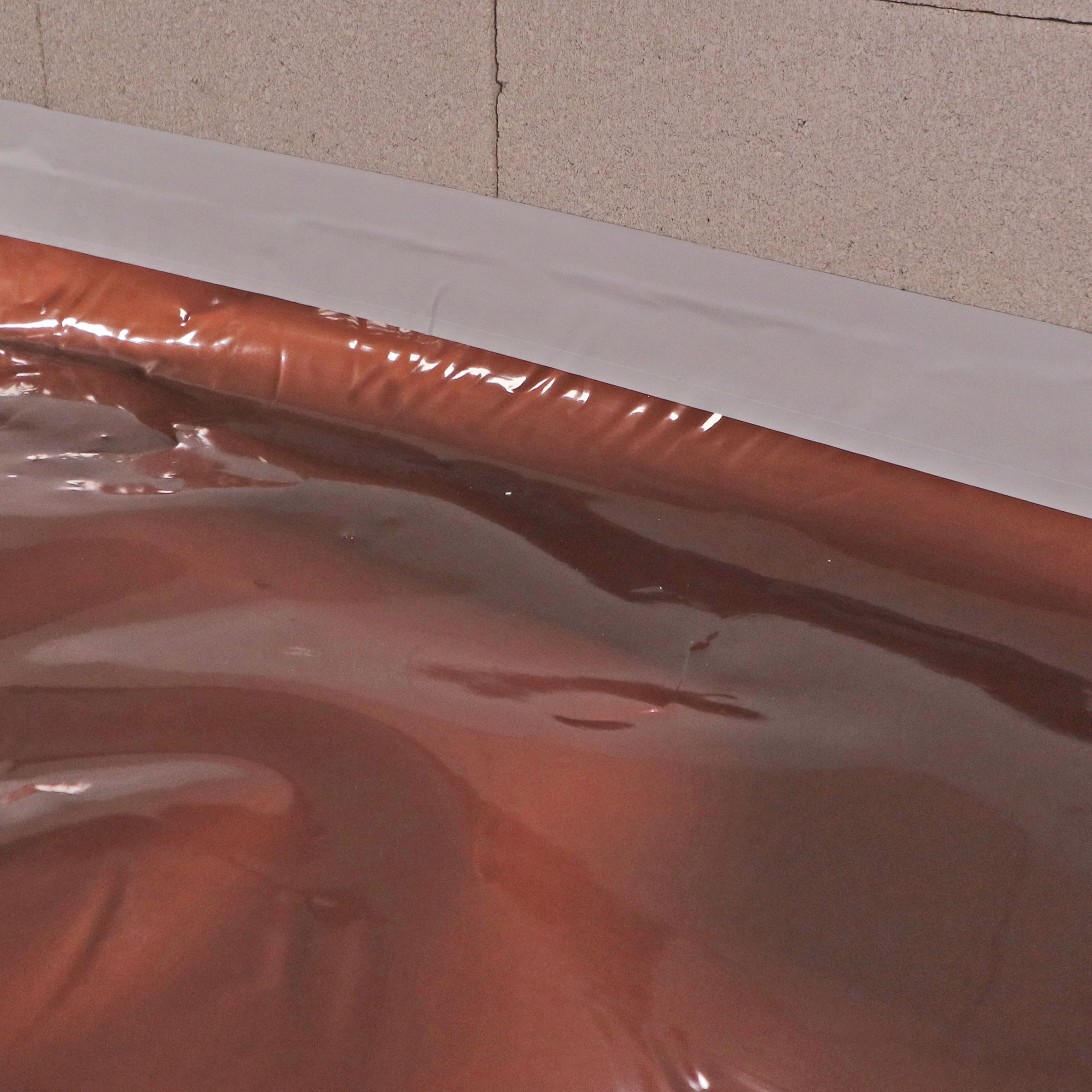

DragoSeal Tape is engineered to bond specifically to Drago Wrap. With both great initial tack and long-term adhesion, this barrier tape effectively secures seams and seals pipe penetrations.

APPLICABLE STANDARDS American Society for Testing & Materials (ASTM):

  • ASTM D2240: Test Method for Rubber Property – Durometer Hardness
  • ASTM F1249: Test Method for Water Vapor Transmission Rate through Plastic Film and Sheeting Using a Modulated Infrared Sensor
  • ASTM D471: ASTM D471: Test Method for Rubber Property – Effect of Liquids
  • ASTM D543: Standard Practices for Evaluating the Resistance of Plastics to Chemical Reagents

Physical Properties:

  • Total Thickness: 26 mils
  • Dimensions: 4" x 50'
  • Water Vapor Permeance: <0.02 perms
  • Color: Grey
  • Material: Engineered film and synthetic rubber blend
  • Installation Temperature: 40°F/110°F
  • In service Temperature Range: -20°F/140°F
  • Chemical Resistance: No significant change

Product Benefits:

  • Available nationwide
  • Easy installation
  • Low maintenance needed
  • Tested and approved for use with the innovative Drago Wrap Vapor Intrusion Barrier
Disclosure of Representative Status | Installation and Warranty Information
New Call-to-action

As with any protection system, the installation of Drago Wrap is critical to the system’s effectiveness. Drago Wrap and Drago Accessories make it easy to complete a successful installation. Please refer to the complete Drago Wrap Installation Instructions.
